Nippon Genetics
FastGene NanoSpec Photometer (UV-VIS Photometer)
Product Code:
NGE-FG-NP01
Log in for pricing
contact customerservice@geneworks.com.au for pricing
FastGene NanoSpec Photometer
The all-round microvolume spectrophotometer!
- Best device performance: Microvolume drop and civetter reader
- Powerful: high end quantitative DNA/RNA and protein analysis (full spectrum: 190-850nm)
- Cost-savings: stand-alone device with integrated control unit
- Convenient usage: simple and intuitive menu
- Highest reliablity: 20 pre-configured measuring modes
The FastGene NanoSpec Photometer is a compact microvolume UV-Vis spectrophotometer characterised by highest user-friendliness. It enables fast and easy quantification and analysis of nucleic acids and proteins by UV-Vis absorption spectrophotometry. Integrating a microvolume sample measuring mode and a cuvette measuring mode, the measurement of a wide concentration range is enabled. You can easily set over 20 measuring modes.
Best device performance and versatile quantitative analysis (e.g., dsDNA, ssDNA, RNA, lysozyme, BSA, OD600) due to full spectrum analysis (190 nm–850 nm).
Extended use for protein measurement and cell counting due to the cuvette mode.
Sample-saving due to microvolume mode (1-2uL sample volume).
Convenient utility due to an intuitive menu and user-specific workspace after user login.
Clean workplace with glove compatible LCD touch screen.
Highest reliability in results due to 20 pre-configurated measuring modes ensuring secure utilisation.
Cost saving with integrated control unit and extensive, flexible application options.
Fits anywhere with small instrument footpring (21cm x 29cms), and less than 3kg.
Comfortable and safe data management due with onboard file storage and USB data transfer capabilities.
Reduces application time with short measurment and reading times (<8secs) - no need for lamp warming up.
Full Spectrum Analysis
The FastGene NanoSpec measures the absorption spectrum UV-VIS (190nm to 850nm) in seconds using array type spectrophotometer technology with Xenon lamp and CMOS sensor (2048 pixels)
Measurment modes and configuration
The designated factor of each of the pre-configured measurement modes is set on assembly - only limited user calibration is required on instal. Applications include:
Nucleic Acids: dsDNA, ssDNA, RNA, miRNA, and custom applications
Protein UV: BSA, SA, IgB, IgE Human, Lysozyme, OD1, Molar Extinction Coefficient
Protein Assays: Bradford, Biuret, BCA, Lowry
And More: Kinetics, OD600, Photometric, Spectrum, ABS Ratio, Concentration, Quantification

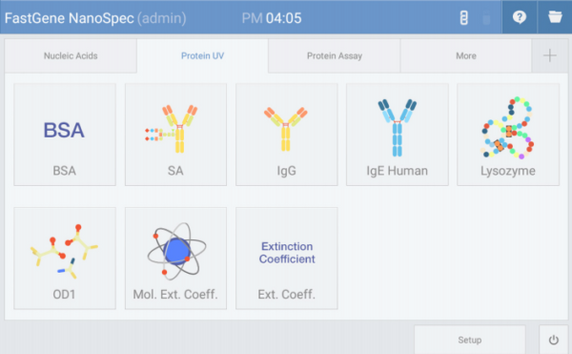

Simple software and menu operation
The menu navigation of the FastGene NanoSpec is very simple and intuitive. The >20 preconfigurated measuring modes can directly be selected via a glove compatible full colour LCD screen.
FastGene NanoSpec Photometer
The all-round microvolume spectrophotometer!
- Best device performance: Microvolume drop and civetter reader
- Powerful: high end quantitative DNA/RNA and protein analysis (full spectrum: 190-850nm)
- Cost-savings: stand-alone device with integrated control unit
- Convenient usage: simple and intuitive menu
- Highest reliablity: 20 pre-configured measuring modes
The FastGene NanoSpec Photometer is a compact microvolume UV-Vis spectrophotometer characterised by highest user-friendliness. It enables fast and easy quantification and analysis of nucleic acids and proteins by UV-Vis absorption spectrophotometry. Integrating a microvolume sample measuring mode and a cuvette measuring mode, the measurement of a wide concentration range is enabled. You can easily set over 20 measuring modes.
Best device performance and versatile quantitative analysis (e.g., dsDNA, ssDNA, RNA, lysozyme, BSA, OD600) due to full spectrum analysis (190 nm–850 nm).
Extended use for protein measurement and cell counting due to the cuvette mode.
Sample-saving due to microvolume mode (1-2uL sample volume).
Convenient utility due to an intuitive menu and user-specific workspace after user login.
Clean workplace with glove compatible LCD touch screen.
Highest reliability in results due to 20 pre-configurated measuring modes ensuring secure utilisation.
Cost saving with integrated control unit and extensive, flexible application options.
Fits anywhere with small instrument footpring (21cm x 29cms), and less than 3kg.
Comfortable and safe data management due with onboard file storage and USB data transfer capabilities.
Reduces application time with short measurment and reading times (<8secs) - no need for lamp warming up.
Full Spectrum Analysis
The FastGene NanoSpec measures the absorption spectrum UV-VIS (190nm to 850nm) in seconds using array type spectrophotometer technology with Xenon lamp and CMOS sensor (2048 pixels)
Measurment modes and configuration
The designated factor of each of the pre-configured measurement modes is set on assembly - only limited user calibration is required on instal. Applications include:
Nucleic Acids: dsDNA, ssDNA, RNA, miRNA, and custom applications
Protein UV: BSA, SA, IgB, IgE Human, Lysozyme, OD1, Molar Extinction Coefficient
Protein Assays: Bradford, Biuret, BCA, Lowry
And More: Kinetics, OD600, Photometric, Spectrum, ABS Ratio, Concentration, Quantification
Simple software and menu operation
The menu navigation of the FastGene NanoSpec is very simple and intuitive. The >20 preconfigurated measuring modes can directly be selected via a glove compatible full colour LCD screen.
